GPSDO Performance Comparison
Detailed measurement data and visual analysis comparing two Leo Bodnar GPS Disciplined Oscillators under controlled laboratory conditions.
Measurement Setup
- DUT 1: Leo Bodnar LBE-1420 (connected to Channel A)
- DUT 2: Leo Bodnar Mini Precision GPS Reference Clock (connected to Channel B)
- External Reference: AR-40A Rubidium Frequency Standard
- Frequency Counter: TinyGTC by Erik Kaashoek (referenced to the AR-40A)
- Antenna: Both units share a common outdoor roof antenna via a precision active splitter.
- Methodology: Cross-swapped all hardware (power supplies, cables, counter channels) to ensure results are intrinsic to the GPSDO units.
Statistical Data & Graphs
Direct comparison of frequency distribution and short-term stability.
LBE-1420 Statistics

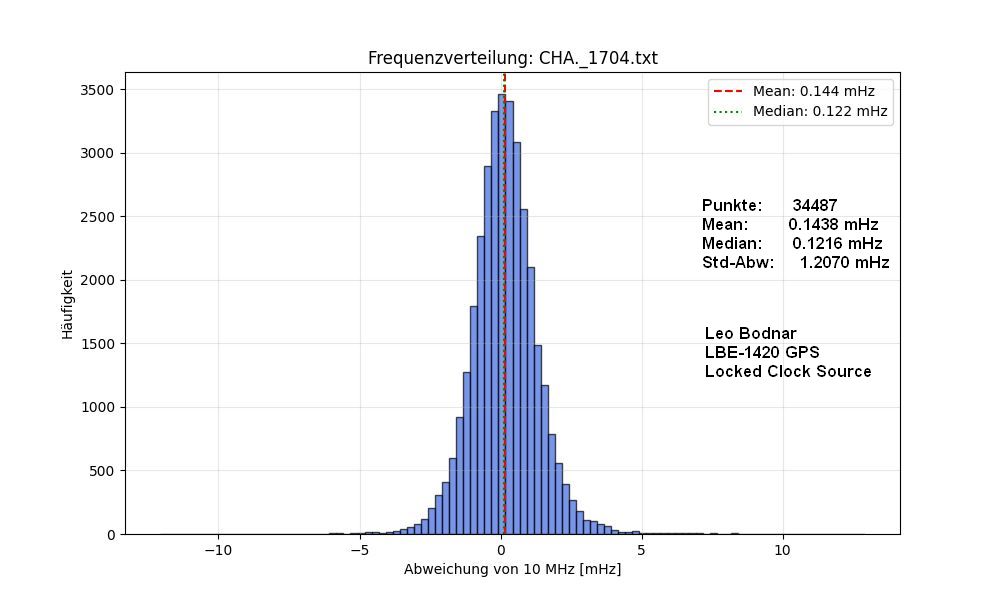

Frequency distribution (Ch A)
Mini GPS Statistics

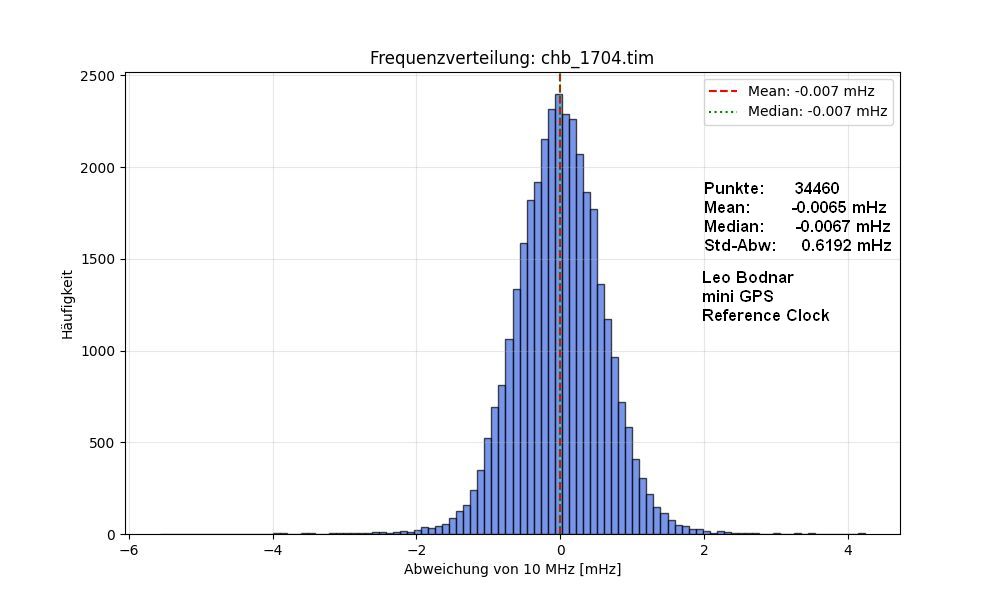

Frequency distribution (Ch B)Note on terminology (German to English):
Mittelwert:
Mean
Median:
Median
Std-Abw:
Standard Deviation
Device Configuration
Settings used during the measurement run as reported by the Leo Bodnar software.

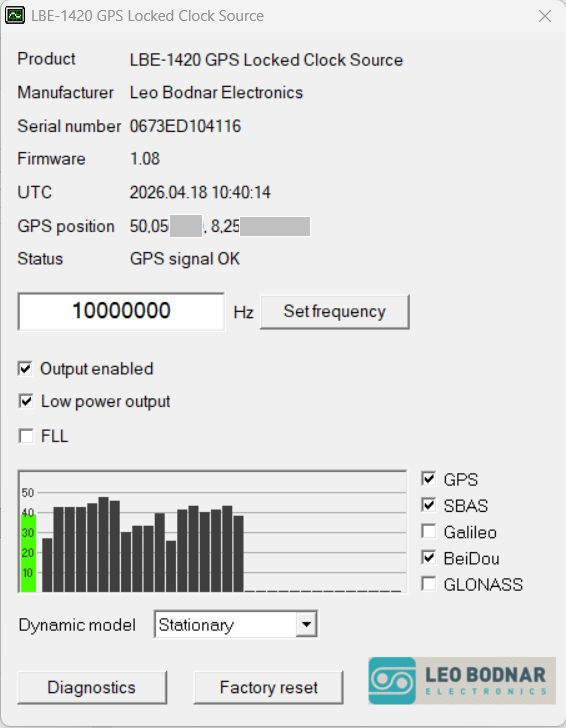

LBE-1420 Config (Part 1)

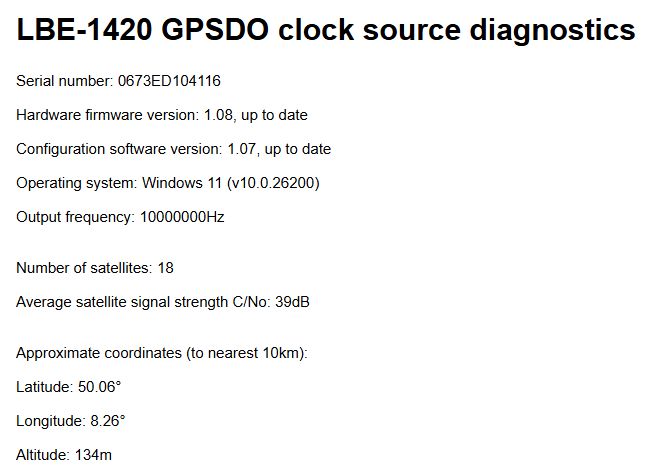

LBE-1420 Config (Part 2)

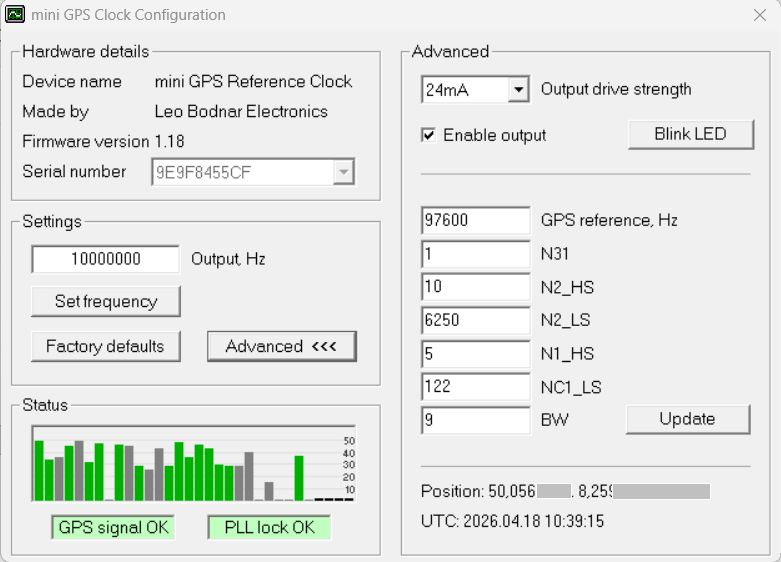

Mini GPS Config
Raw Data for TimeLab
The following .tim files contain the timestamped frequency data for further analysis.
- cha_1704.tim – Raw data: Leo Bodnar LBE-1420
- chb_1704.tim – Raw data: Leo Bodnar Mini GPS Reference
